The SMPP DCS field (and SMPP character encoding)

This page offers information on how to encode the SMPP DCS field.

How does Ozeki SMS Gateway encode the SMPP DCS field

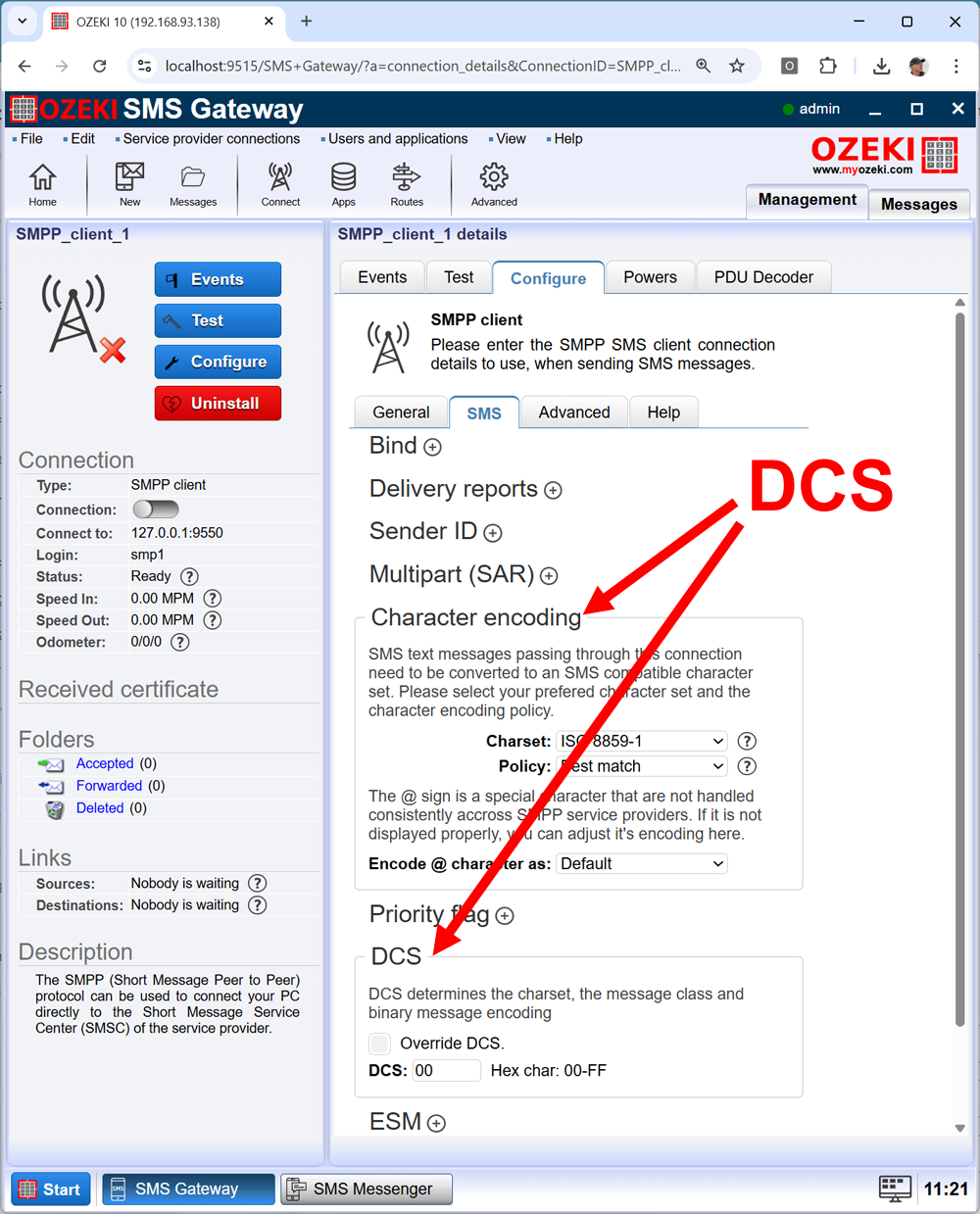

In most scenarios you don't have to manually configure the DCS field of SMPP PDUs. Ozeki SMS Gateway does this for your. To control how Ozeki SMS Gateway does the encoding, you can configure the default aphabet on the SMPP Client configuration form (Figure 1).

Figure 1 - SMPP DCS Encoding

On this form, you can set the preferred character set, or you can ask Ozeki SMS Gateway to use a fix value for the DCS parameter in the SMS PDU.

What is the SMPP DCS Field?

The Data Coding Scheme (DCS) in SMPP (Short Message Peer-to-Peer Protocol) is a 1-byte field within SMPP PDUs (Protocol Data Units). It defines how the message payload is encoded, enabling proper interpretation by the receiving entity. The DCS specifies:

  • Character encoding (e.g., GSM-7, UCS2, 8-bit binary)
  • Message class (e.g., Flash SMS)
  • Compression flags

DCS Structure and Bitmask

The DCS is a bitmask where each bit group serves a specific purpose:

Bits Description
7-6 Coding Group: Determines the general encoding type.
5-4 Alphabet: Specifies the character set (if Coding Group = 00).
3-0 Message Class/Flags: Indicates message type (e.g., Flash) or compression.

Coding Group Values

Coding Group (Bits 7-6) Description
00 General Data Coding (alphabet specified in bits 5-4)
01 Reserved
10 UCS2 Encoding (16-bit)
11 Data Coding/Message Class (e.g., Flash SMS)

Example DCS Values

DCS (Hex) Description Binary
0x00 GSM-7 Default Alphabet 00000000
0x04 8-bit Binary Data 00000100
0x08 UCS2 (Unicode) 00001000
0x10 Flash SMS (GSM-7) 00010000
0xF0 Flash SMS (UCS2) 11110000

Example SMPP PDUs with DCS

Example 1: SubmitSM with GSM-7 Encoding (DCS=0x00)

0000001D  // Command Length (29 bytes)
00000004  // Command ID (SubmitSM)
00000001  // Sequence Number
00        // Source TON
00        // Source NPI
736F7572636500  // Source Address ("source")
00        // Dest TON
00        // Dest NPI
36353433323100  // Destination Address ("654321")
00        // ESM Class
00        // Protocol ID
00        // Priority
00        // Schedule Delivery Time
00        // Validity Period
00        // Registered Delivery
00        // Replace-if-Present
00        // Data Coding (DCS=0x00)
00        // SM Default Message ID
07        // SM Length (7 septets)
C8329BFD06DDDF72  // Short Message ("Hello!")

Example 2: SubmitSM with UCS2 Encoding (DCS=0x08)

00000024  // Command Length (36 bytes)
00000004  // Command ID (SubmitSM)
00000002  // Sequence Number
00        // Source TON
00        // Source NPI
736F7572636500  // Source Address ("source")
00        // Dest TON
00        // Dest NPI
36353433323100  // Destination Address ("654321")
00        // ESM Class
00        // Protocol ID
00        // Priority
00        // Schedule Delivery Time
00        // Validity Period
00        // Registered Delivery
00        // Replace-if-Present
08        // Data Coding (DCS=0x08)
00        // SM Default Message ID
0C        // SM Length (12 bytes)
00480065006C006C006F0021  // "Hello!" in UCS2

Example 3: Flash SMS (DCS=0x10)

0000001D  // Command Length (29 bytes)
00000004  // Command ID (SubmitSM)
00000003  // Sequence Number
00        // Source TON
00        // Source NPI
736F7572636500  // Source Address ("source")
00        // Dest TON
00        // Dest NPI
36353433323100  // Destination Address ("654321")
00        // ESM Class
00        // Protocol ID
00        // Priority
00        // Schedule Delivery Time
00        // Validity Period
00        // Registered Delivery
00        // Replace-if-Present
10        // Data Coding (DCS=0x10: Flash SMS)
00        // SM Default Message ID
07        // SM Length (7 septets)
C8329BFD06DDDF72  // Short Message ("Hello!")

Conclusion

The DCS field is critical for ensuring SMS messages are encoded and displayed correctly. Implementations may vary, so consult the SMPP specification (v3.4 or v5.0) for precise bitmask details. Proper use of DCS avoids encoding errors and ensures compatibility across SMSCs.
